Hand Pressure Test Pump

Name: Hand Pressure Test Pump
Brand: XIYI
Price: 200 USD

Quality Hand Pressure Test Pump wholesale

Brand Name : XIYI

Model Number : Y039 / Y060 /YFP2.5

Place of Origin : XI'AN,CHINA

MOQ : 1PCS

Price : USD200 PER SET

Payment Terms : T/T

Supply Ability : 1000 PCS / ONE MOUTH

Delivery Time : Payment immediately after shipment

Packaging Details : Export standard packing box (aluminum alloy)

Contact Now

Description of hand pressure test pump :

Pressure pump is a portable handheld pressure pump. Instruments for testing various types of pressure calibration instrumentation and control room on-site installation of industrial processes used. Pressure source is also available for the pressure measurement instruments factory calibration. Within each Where 60Mpa type pressure transmitters, pressure sensors and a variety of pressure gauges

Technical parameters of hand pressure test pump :

1 Output pressure: 0 ~ 60Mpa
2 Working environment:
a: Temperature: 0 ~ 40 °C b: Relative humidity: ≤ 100%
3 Weight: ≤ 0.8Kg
4 Table connector thread: M14 × 1.5 thread (exports by 1/4NPT), high-pressure hose connector thread: M20 × 1.5 thread (exports by 1/2NPT) requirements

Model number	range	Medium
Y039	0-1.6Mpa	barometric pressure
Y061	-0.1-0Mpa	barometric pressure
Y060	0-25Mpa	Hydraulic pressure
YFP-1.6	-0.1-1.6Mpa	barometric pressure
YFP-2.0	-0.1-2.0Mpa	barometric pressure
YFP-2.5	-0.1-2.5Mpa	barometric pressure
XYSB60	0-60Mpa	Hydraulic pressure

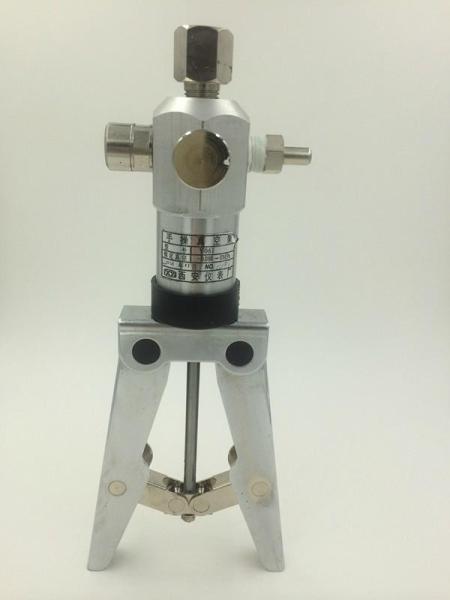

Hand Pressure Test Pump Images
